In any electrical system, safety is non-negotiable — and one of the most crucial safety measures is earthing (or grounding). Proper earthing ensures that any fault current is safely discharged into the ground, reducing the risk of electric shock, fire, and damage to equipment. And at the core of this safety system lies a vital component: the copper earthing rod.

Choosing the right copper rod for earthing is not just about buying a metal stick and driving it into the soil. It involves understanding technical parameters, quality standards, and site conditions to ensure maximum efficiency and longevity. In this blog, we’ll walk you through how to select the best copper rod for your earthing system — in clear, simple terms.

Why Copper is Preferred for Earthing

Copper is widely used for earthing because of its excellent electrical conductivity and resistance to corrosion. This means it allows fault current to flow quickly and safely into the ground while lasting for many years without significant deterioration.

Compared to other metals like galvanized iron (GI) or steel, copper rods:

• Have lower electrical resistance, ensuring faster dissipation of current.

• Are highly durable, even in moist or chemically active soils.

• Require less maintenance over time.

Because of these qualities, copper rods are the preferred choice in critical installations like power stations, industrial plants, commercial buildings, and even residential complexes.

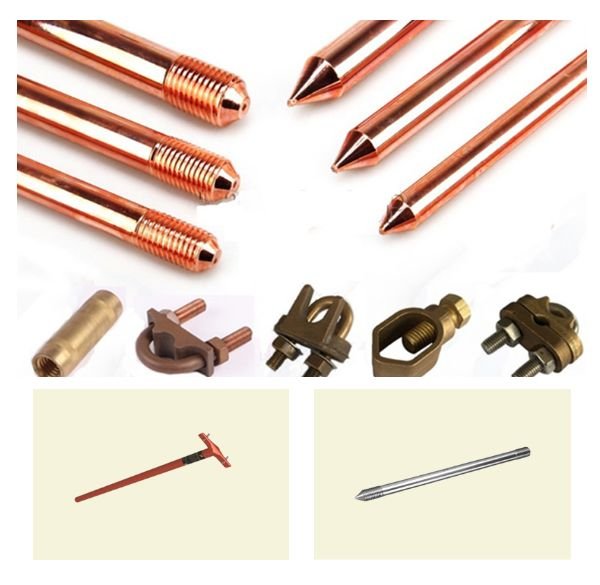

Key Types of Copper Earthing Rods

Before you choose, it’s helpful to understand the main types available:

1. Solid Copper Rods

These are made entirely of copper. They provide superior conductivity and high corrosion resistance, making them suitable for aggressive soil conditions. However, they are more expensive and heavier, which can make installation slightly more challenging.

2. Copper-Bonded (Copper-Clad) Steel Rods

These rods have a steel core coated with a thick layer of copper through electroplating or molecular bonding. They offer a good balance of strength (from steel) and conductivity/corrosion resistance (from copper). They are also more economical than solid copper rods, making them the most commonly used type in general installations.

Factors to Consider When Choosing a Copper Rod

Now let’s look at the key technical and practical aspects to evaluate before purchasing copper rods for your earthing system.

1. Soil Resistivity

The nature of the soil at your site has a big impact on earthing performance. Clay and loamy soils generally have low resistivity, while rocky, sandy, or dry soils have high resistivity.

• In low-resistivity soils, standard copper-bonded rods are usually sufficient.

• In high-resistivity or corrosive soils, you might need longer rods, multiple rods connected in parallel, or solid copper rods to achieve the desired earth resistance.

It’s a good idea to get a soil resistivity test done before choosing the type and number of rods.

2. Rod Diameter and Length

Rod dimensions affect both the resistance and durability of your earthing system.

• Diameter: Common diameters are 14 mm, 16 mm, and 19 mm. Larger diameters offer lower resistance and greater mechanical strength for driving into the ground.

• Length: Typically ranges from 1.2 metres to 3 metres. Longer rods penetrate deeper, reaching moister, more conductive soil layers, which improves overall earthing performance.

Choose a diameter and length that matches both your site conditions and electrical load requirements.

3. Copper Coating Thickness (for Bonded Rods)

In copper-bonded rods, the thickness of the copper coating is critical. It should be at least 250 microns (0.25 mm) to provide long-term corrosion protection. Lower-quality rods with thin copper plating may corrode quickly, compromising safety and requiring frequent replacements.

Always ask for a manufacturer’s test certificate to confirm copper coating thickness and quality standards (such as IS 3043 or IEEE standards).

4. Corrosion Resistance

Since the rod will remain buried for years, corrosion resistance is essential. Apart from choosing solid copper or thick copper-bonded rods, also consider using protective backfill compounds like bentonite or conductive concrete to enhance soil conductivity and reduce corrosion risks.

5. Mechanical Strength

The rod must withstand hammering or driving into the ground. Steel-core copper-bonded rods are stronger and less likely to bend or break during installation. For hard or rocky terrain, mechanical strength is especially crucial.

Installation Considerations

Even the best copper rod will not work effectively if it’s installed incorrectly. A few expert tips:

• Drive vertically wherever possible to reach deeper, moist soil layers.

• Keep rods away from building foundations and underground utilities.

• Connect the rod using compatible clamps and copper conductors to avoid galvanic corrosion.

• After installation, test the earth resistance using an earth tester or megger to ensure it meets required safety standards (typically less than 5 ohms for most installations).

Quality Certifications to Look For

When purchasing copper rods, look for products that comply with recognized standards such as:

• IS 3043 (Indian Standard) for earthing.

• IEC 62561-2 for lightning protection system components.

• UL 467 for grounding and bonding equipment.

These certifications ensure the rods meet essential performance and safety benchmarks.

Working with Trusted Suppliers

Lastly, sourcing your copper rods from a reliable manufacturer or supplier is crucial. Reputed suppliers provide:

• Quality assurance and test certificates

• Variety in dimensions and types

• Expert advice based on your site conditions

• After-sales support and timely delivery

This ensures you don’t end up with substandard products that compromise your electrical safety.

Final Thoughts

Choosing the right copper rod for earthing is a decision that directly impacts the safety, reliability, and lifespan of your electrical system. Consider soil conditions, rod type, size, copper coating thickness, and certifications carefully.

When in doubt, consult an electrical engineer or a qualified grounding specialist. A well-designed earthing system using the right copper rods will protect your people, equipment, and property for decades to come — and that peace of mind is worth the extra effort.
